At PRECISION, we have over 100 years of combined experience desigNing and improving wire flyer payoffs.
As innovators in payoff technology, we continue to produce a product that will satisfy your budgetary constraints while meeting your process needs.
Our latest innovation is the popular
SQS24000ATC™ Automatic Tension Control Stationary Flyer Payoff, a unit that allows you to separate wire more safely, efficiently and cost effectively than ever before.
Automatic adjustments to line tension are made in milliseconds, and the large, easy to read digital display allows operators to monitor several lines from a safe and comfortable distance.
The unit can be bolted to the floor, requires no manual handling of the flyer arm, has no motor, and no additional air requirements other than what you already have in place.
This makes setup simple and easy for even novice operators, and those who are smaller in stature.
For those who are not ready to move to the next level, we still offer a complete line of Flyer Payoffs utilizing either Pneumatic or advanced Hysteresis clutch technology.
Our pneumatic clutch feeds off of your in-place air system. The clutch is only actuated by air; it is not a continual flow of air. Hundreds of units can run off of one 5hp compressor.
Our hysteresis (magnetic particle) clutch mechanism uses neither air nor electricity, so there are no power or air lines required.
All of our flyers are designed to fit reels from 10" up to 48," and to pay off copper, steel, stainless steel, aluminum, nickel and both silver-clad and gold-clad wire.
They can even be used on both fine and heavier wire, and can operate at speeds of up to 600m (1968ft) per minute.
All of our flyer payoffs can be built to run in either direction, and some can run in both. The standard hardened 50mm pulleys or coated 120mm pulleys can be upgraded to the optional 3-stage Pulley System™ for separating strands. Other pulley options are available.

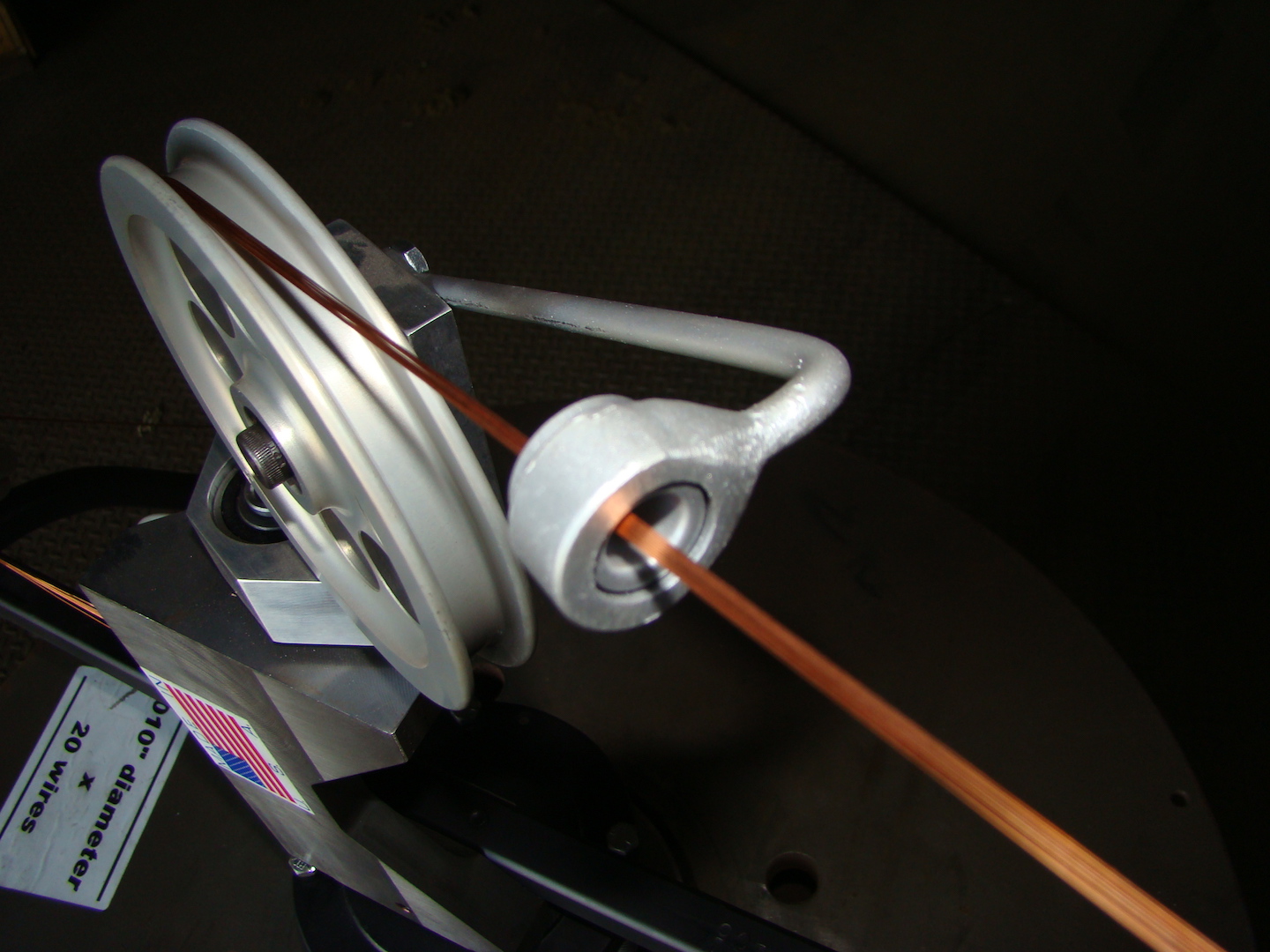

Single-roller, double-roller, and quad-balanced triple-pickup designs are some of the featured styles we produce. Non-rollered, or 'eyelet' style, designs are all available.
Our proprietary Rapid Ratchet™ Lockdown Mechanism firmly and reliably locks into your reel's arbor.
"Our Precision-balanced flyers really fly, so your payoffs can payoff..."
- George Webb II, Vice President
Call 315-361-9159 today
Our full line of Static Wire Flyer Payoffs:
Pneumatic Clutch with 50mm Pulleys

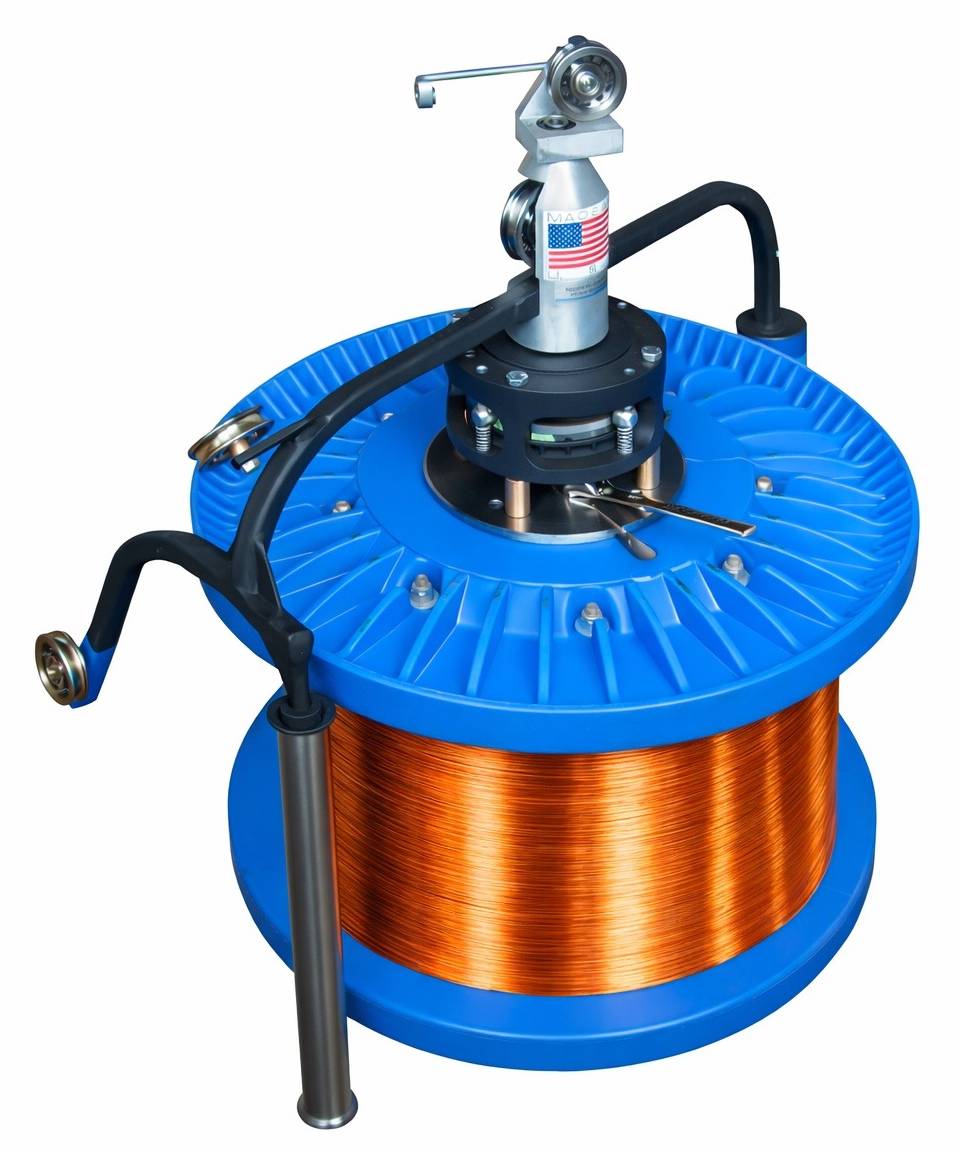

AWF1000-050-SR
Single roller Light Pneumatic
Designed to pay off fine wire at high speeds without sacrificing quality. Like ALL of our flyer payoffs, there is no outside power source required.
The most lightweight of our flyers, this unit can be adjusted "on-the-fly," and is our most popular model.
MORE INFO
|

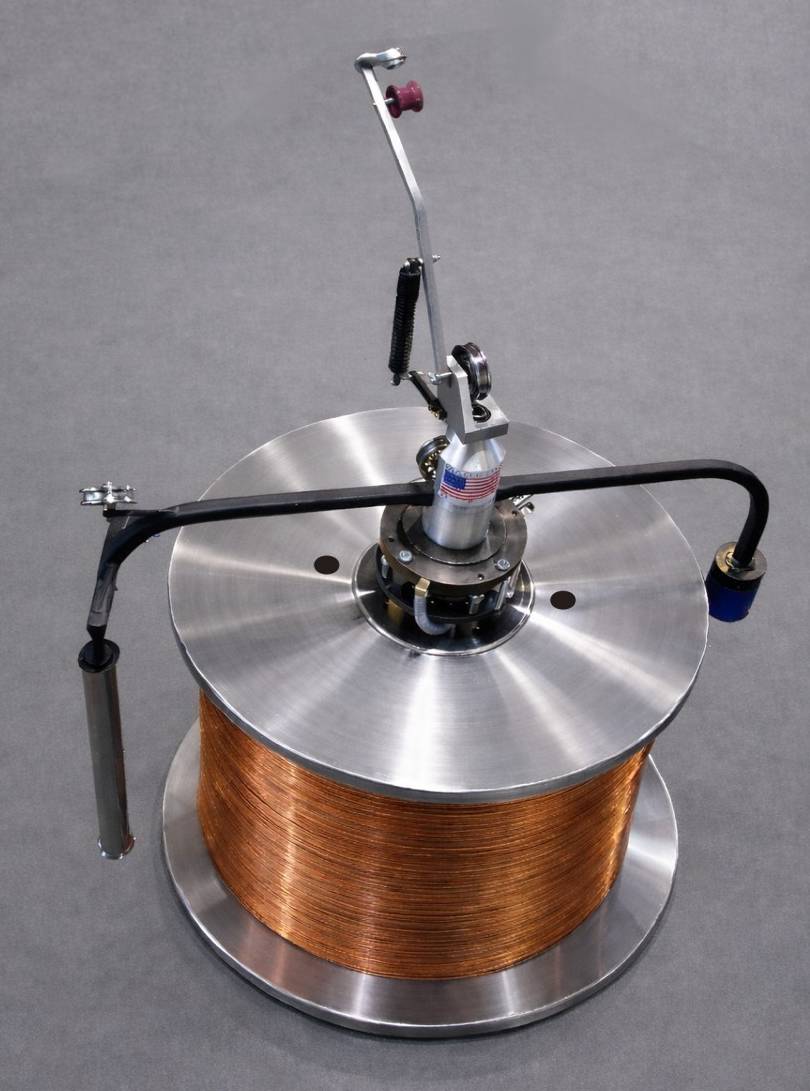

AWF1000-050-SR-TS
Single roller Light Pneumatic
with Tension Suspension™ system
Designed to pay off fine wire at high speeds without sacrificing quality.
Designed for sudden starts and stops while paying off finer strands.
MORE INFO
|

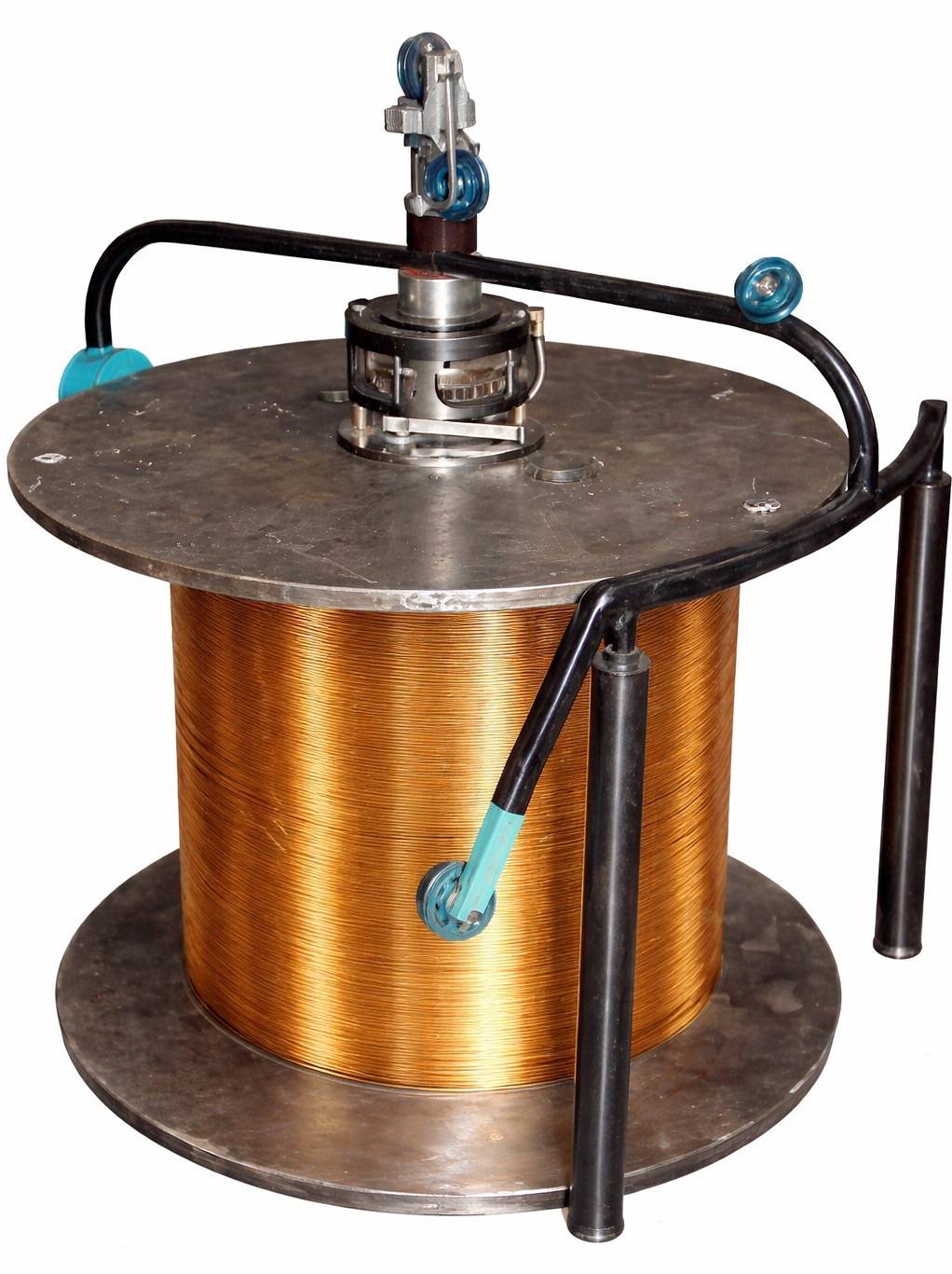

AWF1000-050-DR
Double roller Light Pneumatic Like the AWF1000-050-SR, this unit is designed to pay off fine wire at high speeds without sacrificing quality.
Double roller design more effectively and gently eases or "massages" fine wire off of your reel.
MORE INFO
|
Pneumatic Clutch with 120mm Pulleys

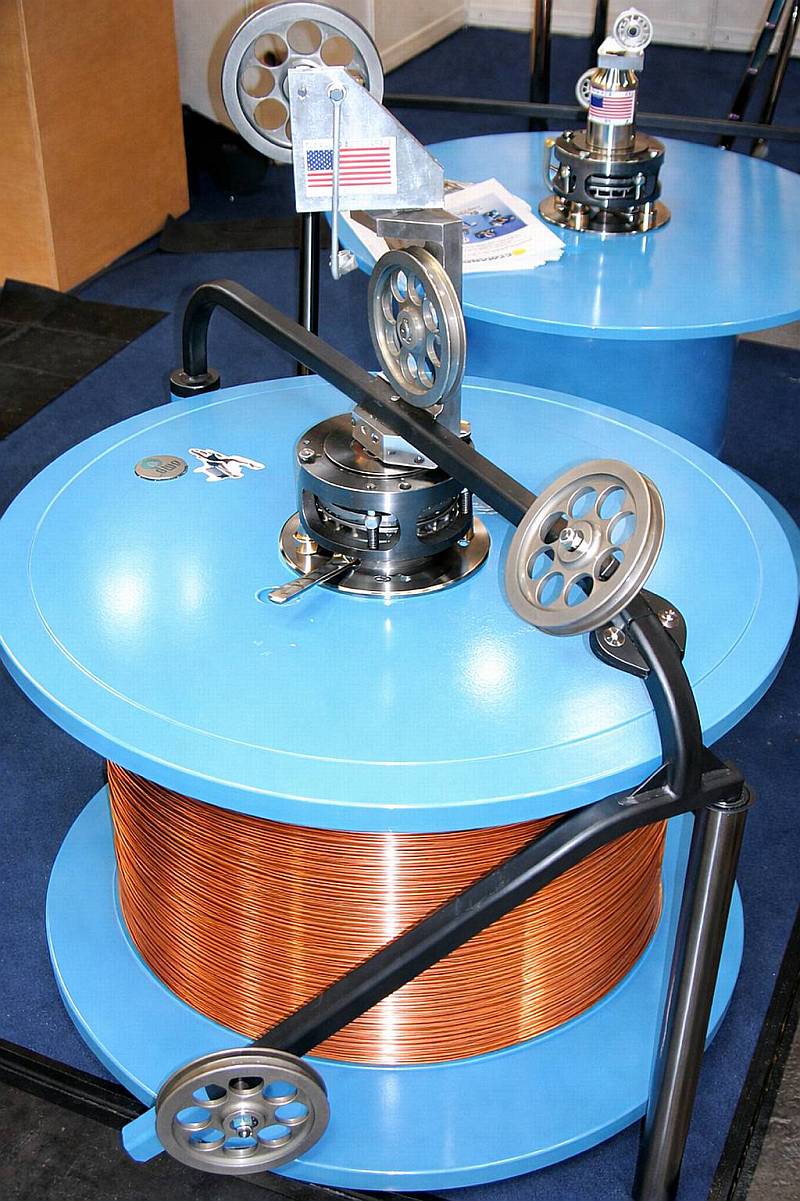

AWF2000-120-SR
Single roller Heavy Pneumatic
Similar to our AWF1000-050, but designed with larger 120mm pulleys for use with heavier wire constructions.
MORE INFO
|

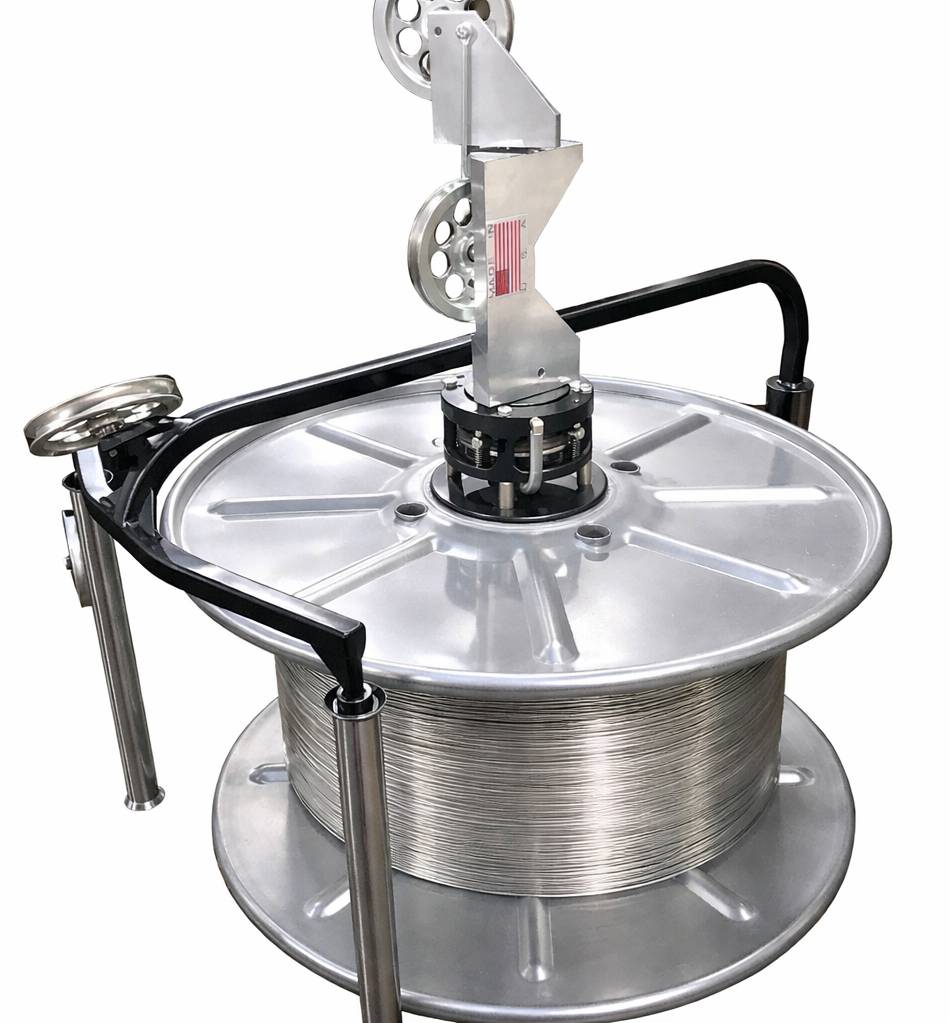

AWF2000-120-DR
Double roller Heavy Pneumatic
Similar to our AWF1000-120, but designed with larger 120mm pulleys and dual rollers for use with heavier wire constructions.
MORE INFO
|

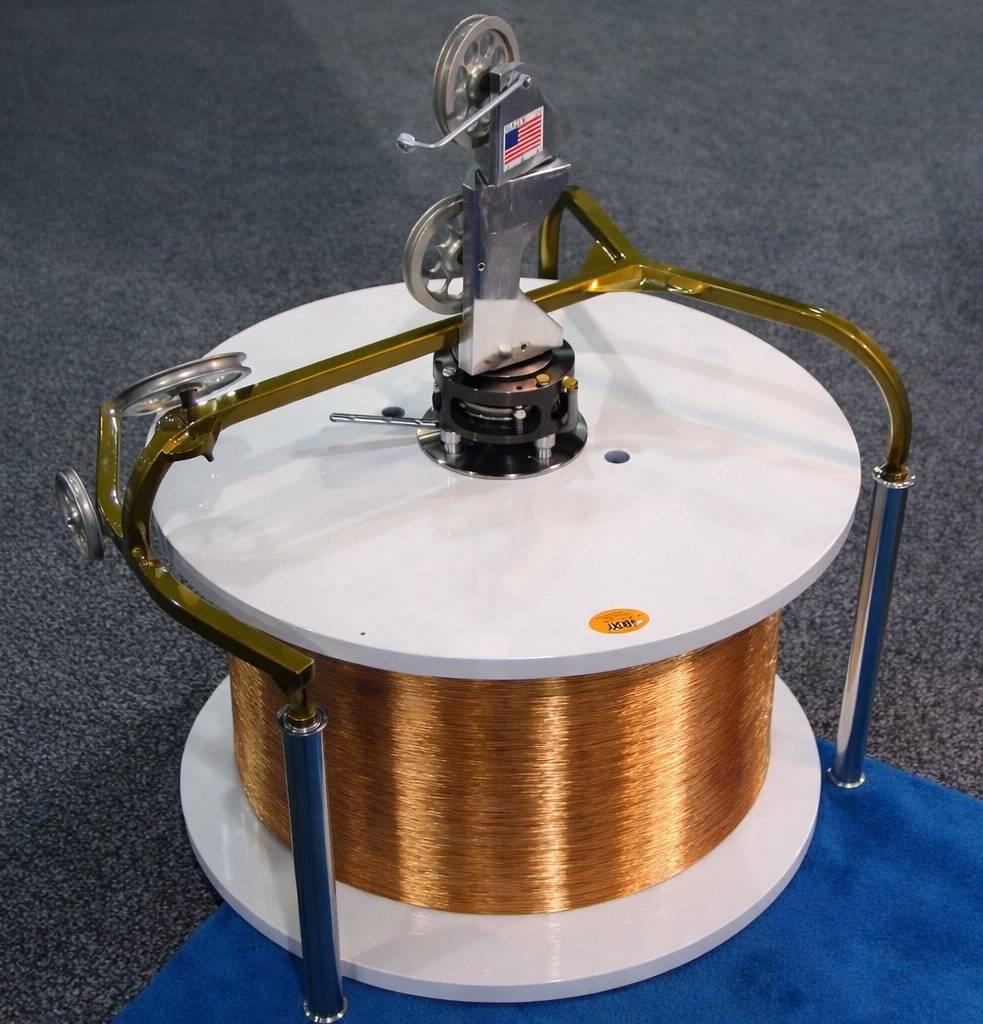

AWF2000-120-QB
Quad-balanced Double roller Heavy Pneumatic
Designed for heavy wire constructions, but the triple pick-up makes it suitable for finer wire, as well.
This extra rugged and durable unit comes with larger 120mm pulleys and dual rollers.
MORE INFO
|

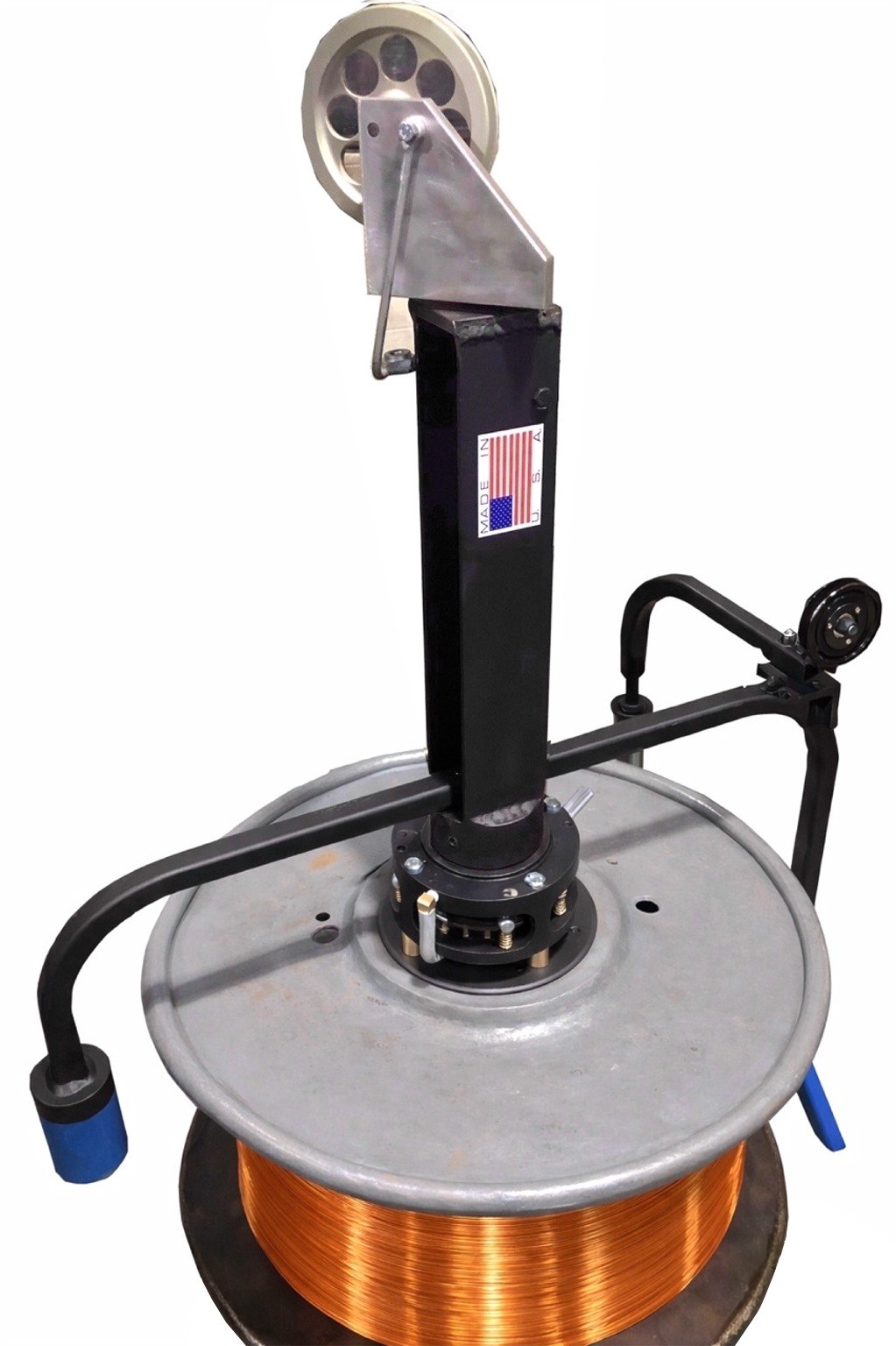

AWF2000-SE
Direction-reversible Pneumatic
Designed for larger gauge, single-end wire, but versatility allows for use with finer wire, as well.
Direction of rotation is reversible, so no more flipping your loaded reels.
MORE INFO
|

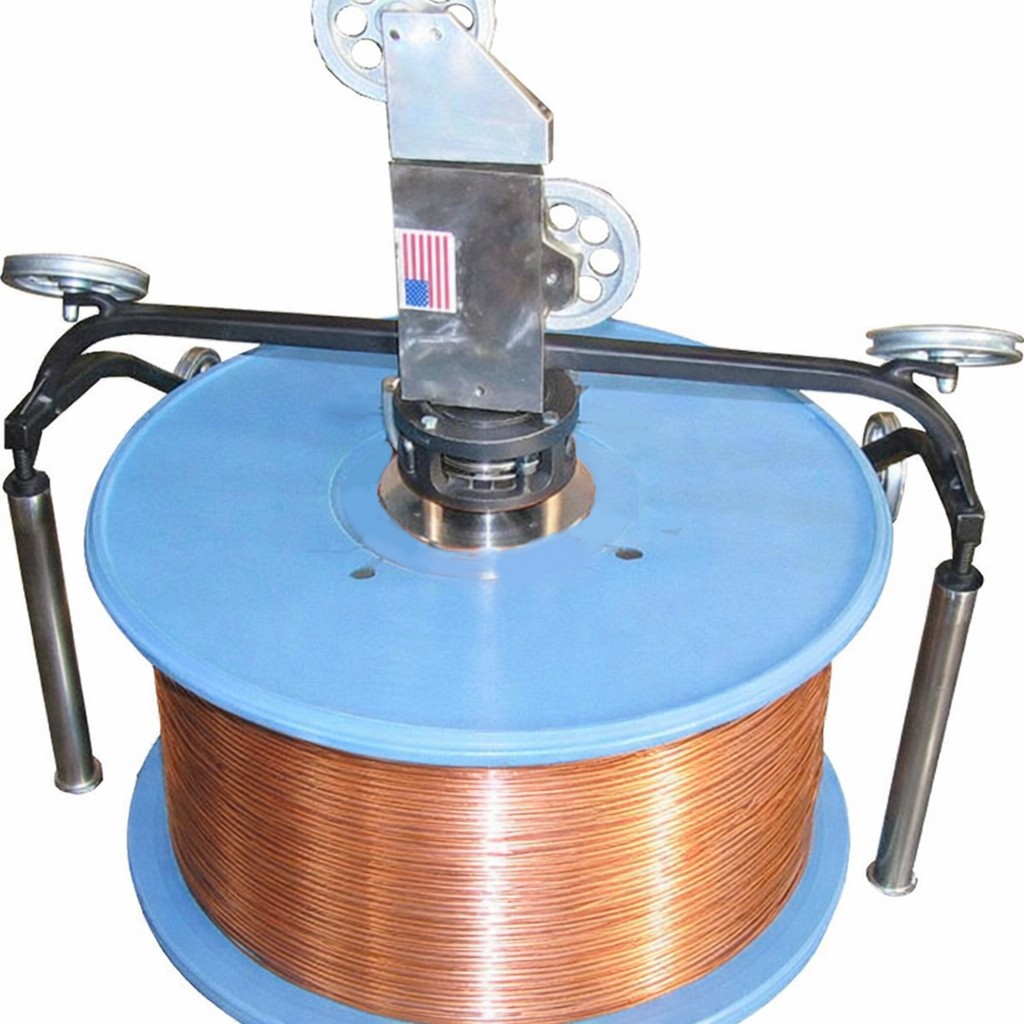

AWF2000-120-DD
Dual-directional Pneumatic
Designed for larger wire, this unit pays off in either direction, so no more flipping your loaded reels.
MORE INFO
|

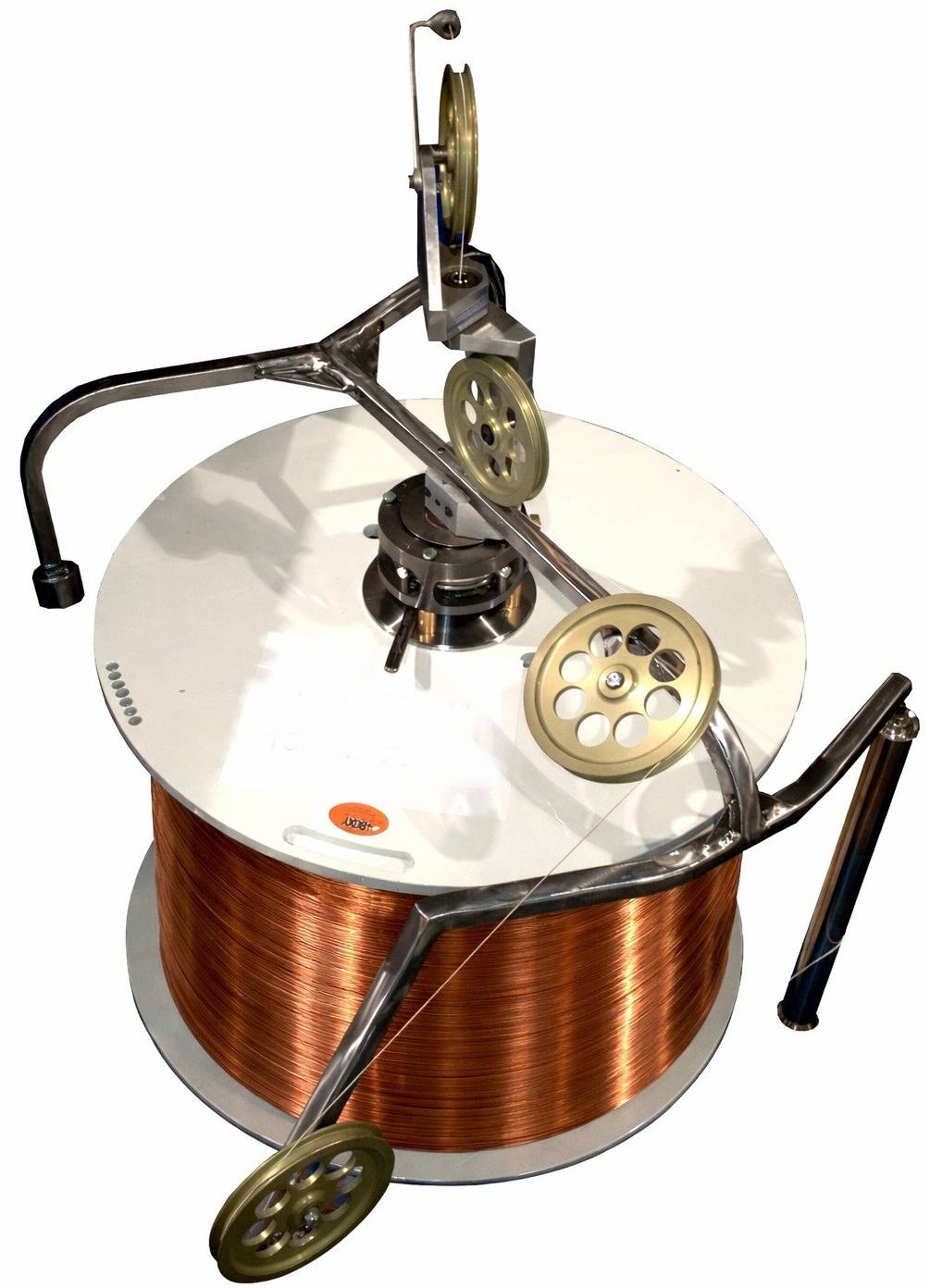

AWF2000-165-QB
Quad-balanced Double roller Heavy Pneumatic
Designed for heavy wire constructions, but the triple pick-up makes it suitable for finer wire, as well.
Extra large, 165mm pulleys
MORE INFO
|
Permanent Magnetic Clutch with 50mm Pulleys
|

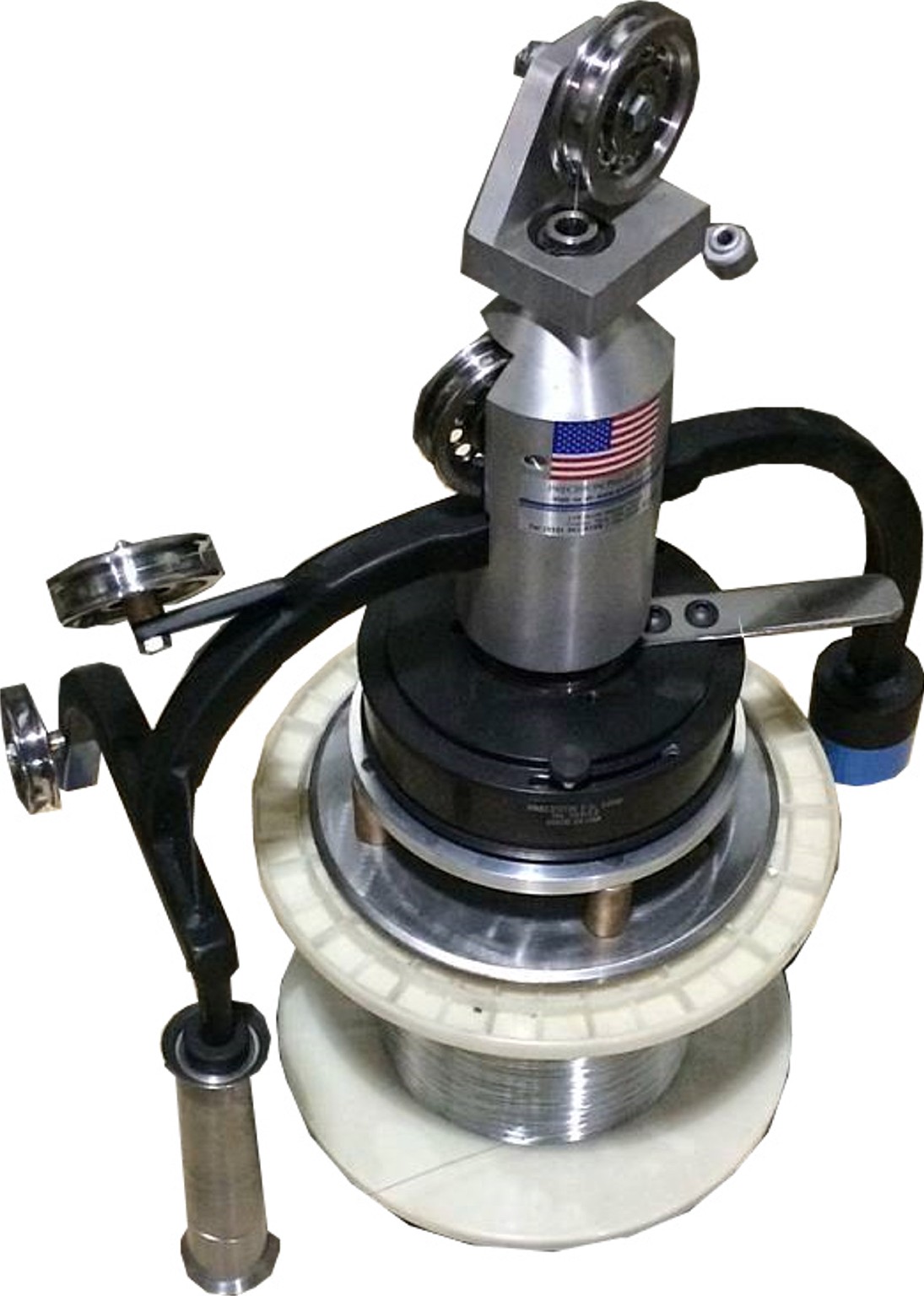

MPF1000-050-SR
Light Permanent Magnetic Particle
Lightest weight permanent magnetic flyer on the market. Custom designed tension adjustment makes this flyer the easiest to adjust, in its class.
MORE INFO
|

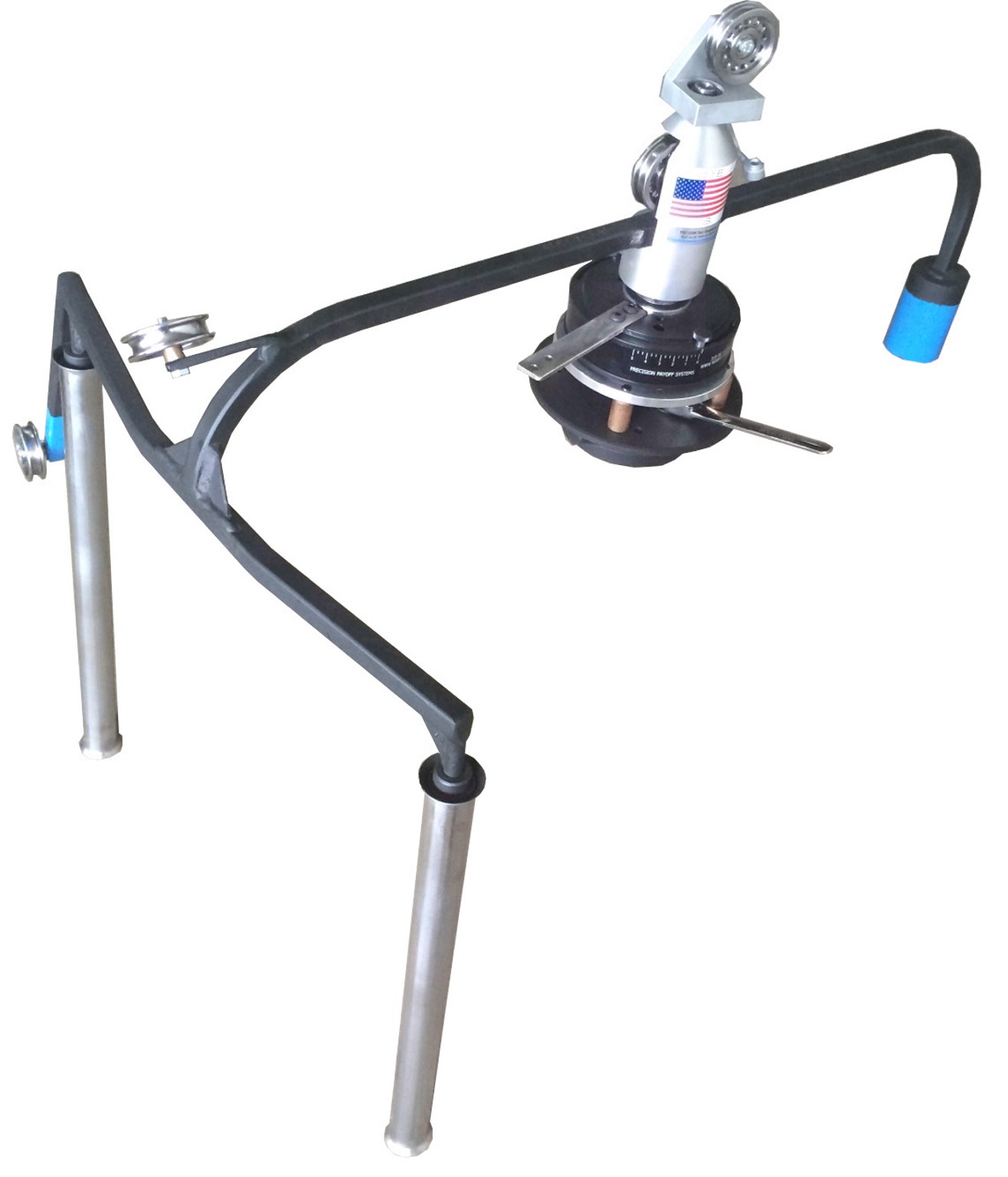

MPF1000-050-DR
Light Permanent Magnetic Particle
Like the MPF1000-050-SR, this unit is designed to pay off fine wire at high speeds without sacrificing quality.
MORE INFO
|

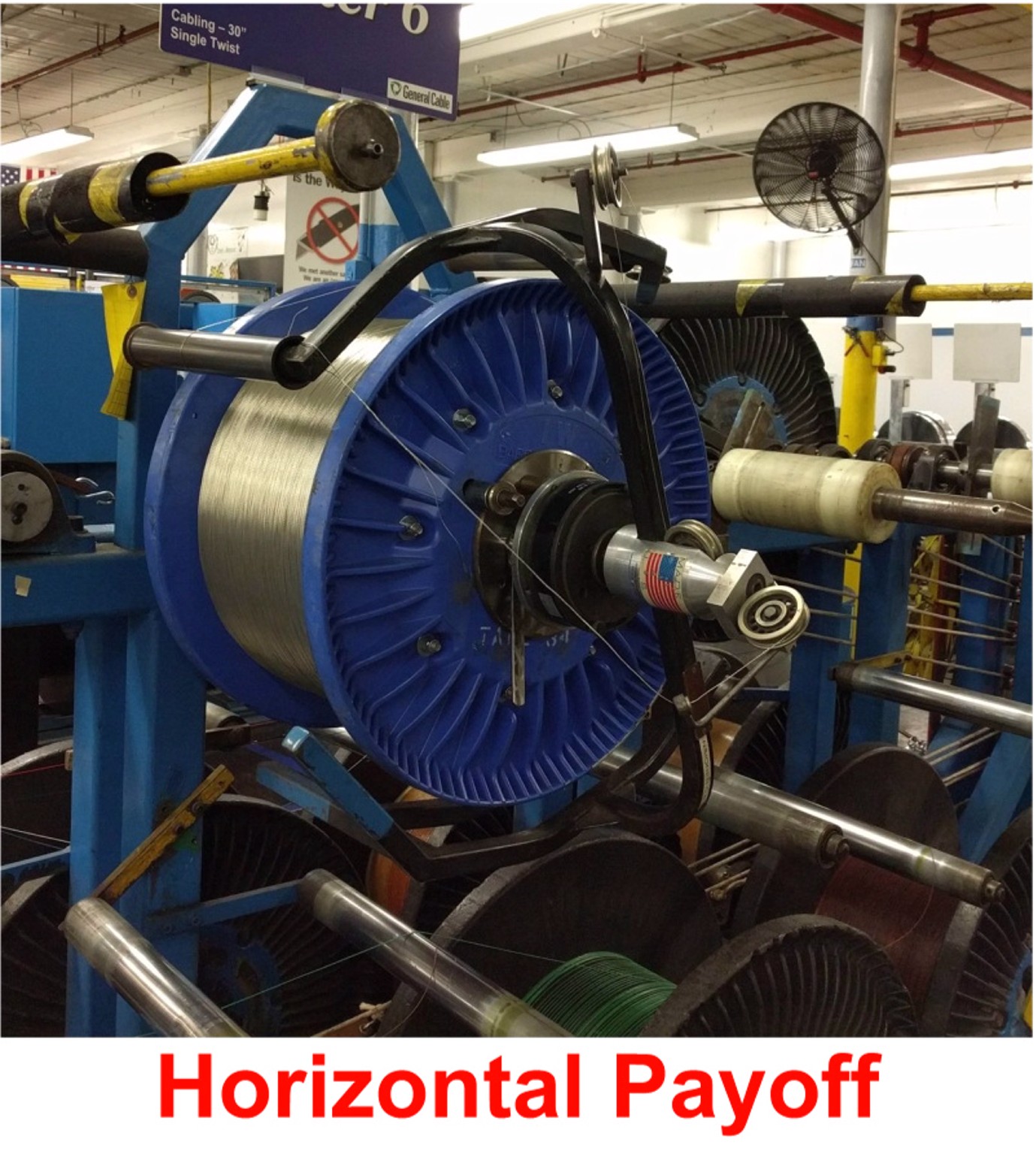

MPF1000-050-QB
Horizontal Quad-balanced Light Permanent Magnetic Particle
Designed to pay off finer wire constructions and horizontal applications.
Double roller design more effectively and gently eases or "massages" fine wire off of your reel.
MORE INFO
|

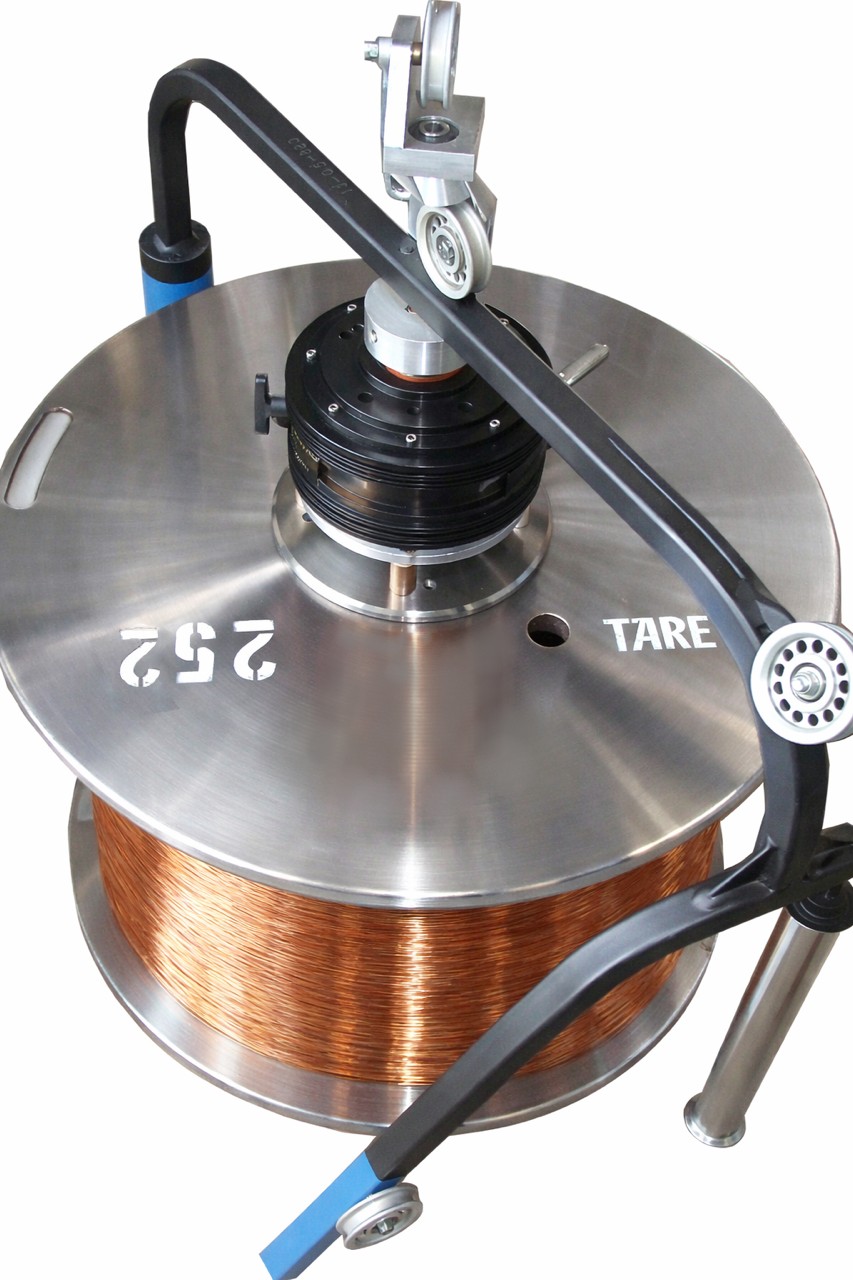

MPF2000-050-SR
Heavy Permanent Magnetic Particle
Single-roller with 50mm pulleys
Heavy-duty frame, designed to pay off heavier constructions.
MORE INFO
|

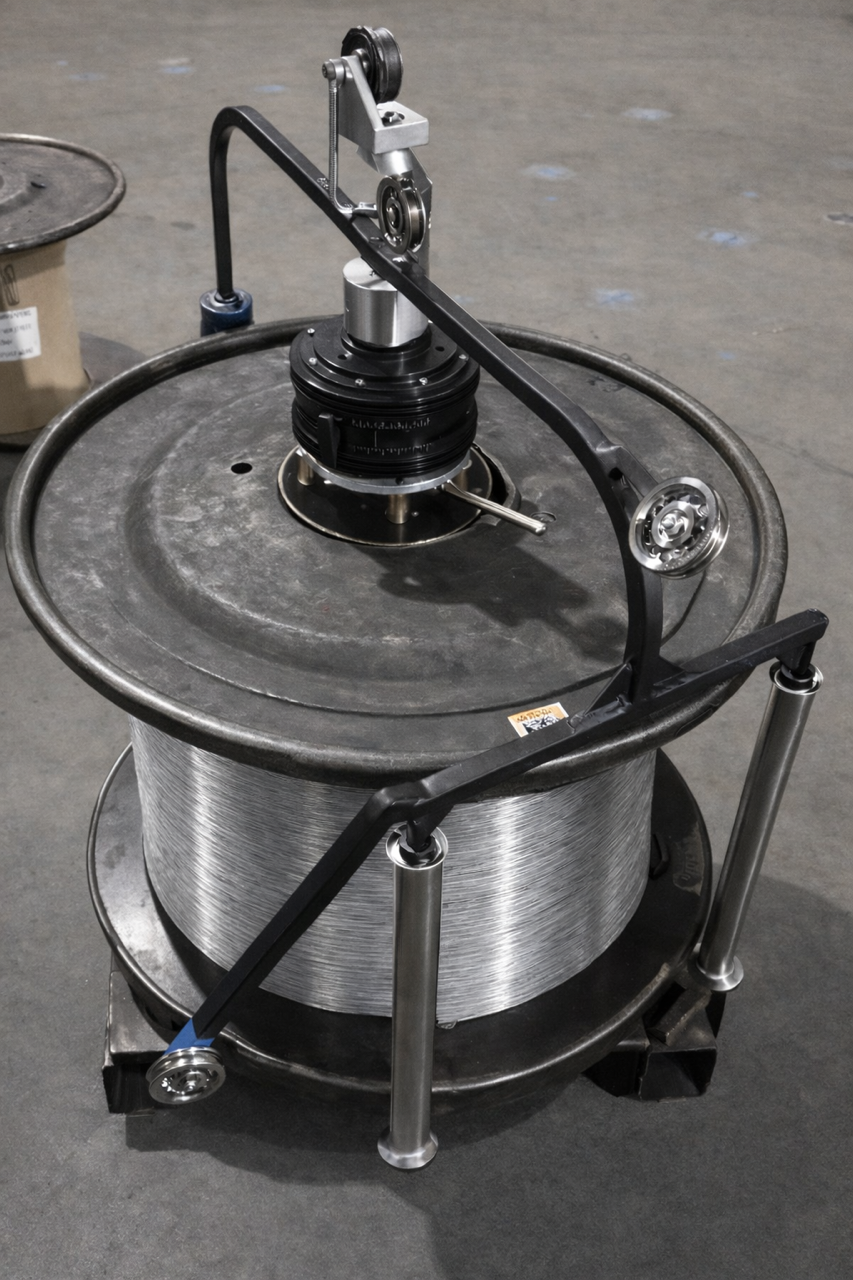

MPF2000-050-DR
Heavy Permanent Magnetic Particle
Double-roller, 50mm pulleys
Heavy-duty frame, designed to pay off heavier constructions.
MORE INFO
|
Permanent Magnetic Clutch with 120mm Pulleys
|

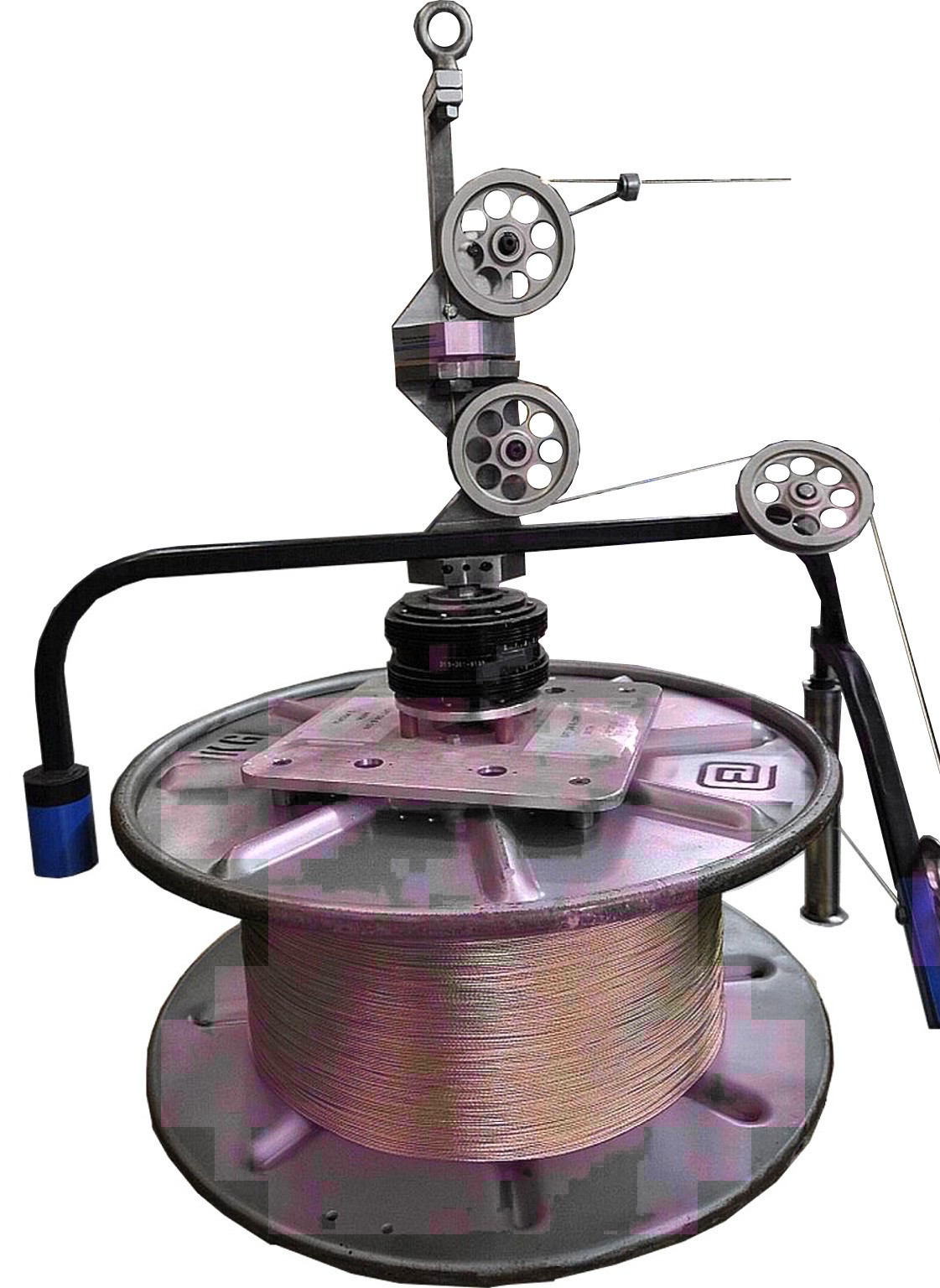

MPF2000-120-SR
Heavy Permanent Magnetic Particle
Single-roller, 120mm pulleys
Heavy-duty frame, designed to pay off heavier constructions.
MORE INFO
|

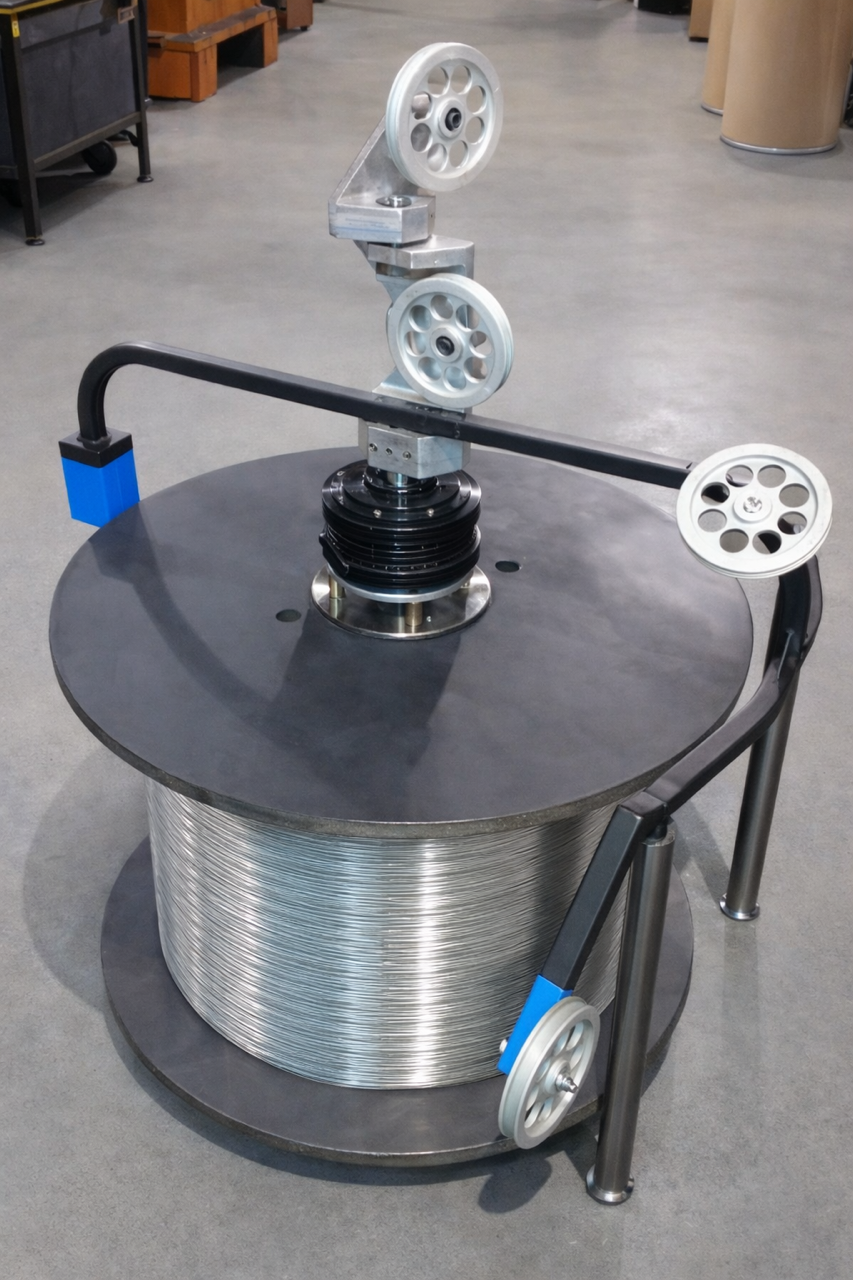

MPF2000-120-DR
Heavy Permanent Magnetic Particle
Double-roller, 120mm pulleys
Heavy-duty frame, designed to pay off heavier constructions.
MORE INFO
|

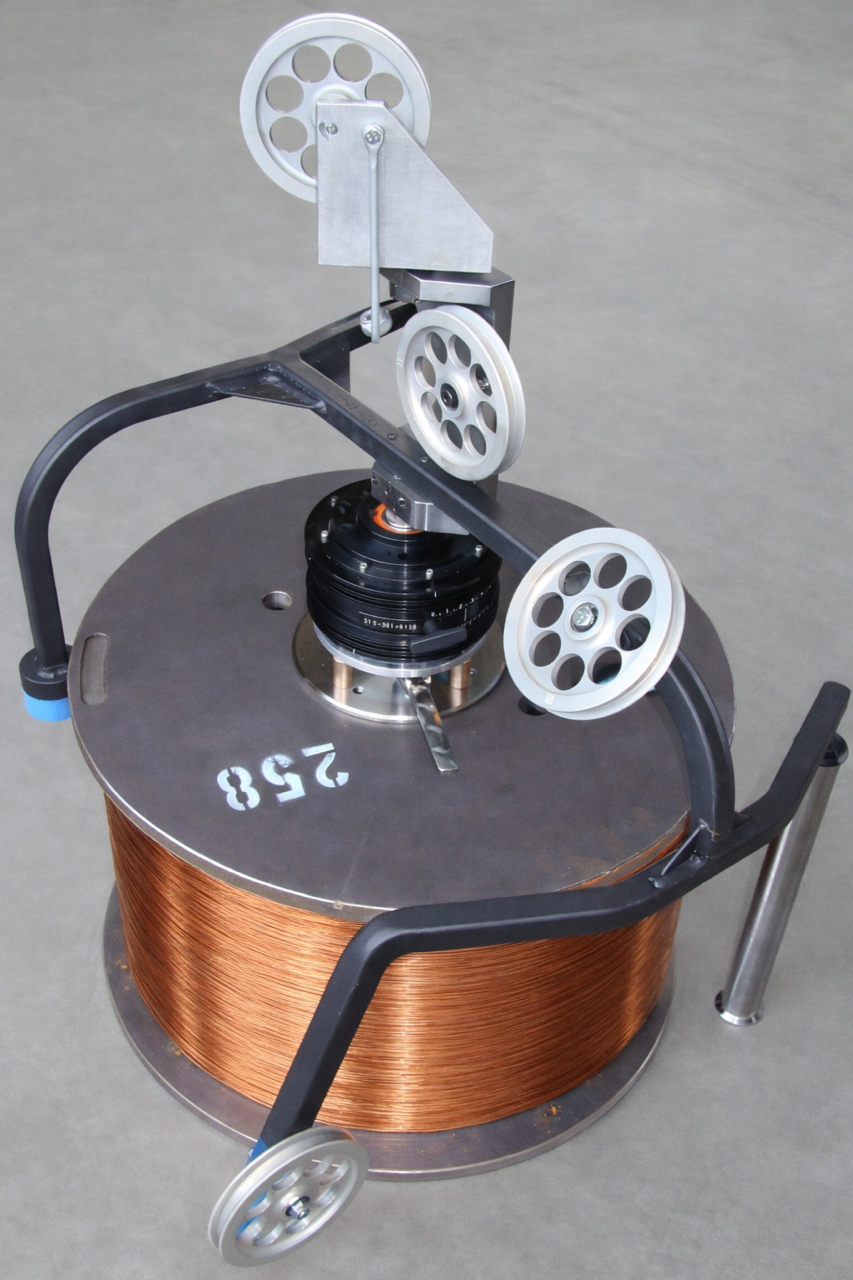

MPF2000-120-QB
Quad-balanced Heavy Permanent Magnetic Particle
Double roller design more effectively and gently eases or "massages" fine wire off of your reel.
120mm pulleys
Heavy-duty frame, designed to pay off heavier constructions.
MORE INFO
|
Permanent Magnetic Clutch - Special Feature
|

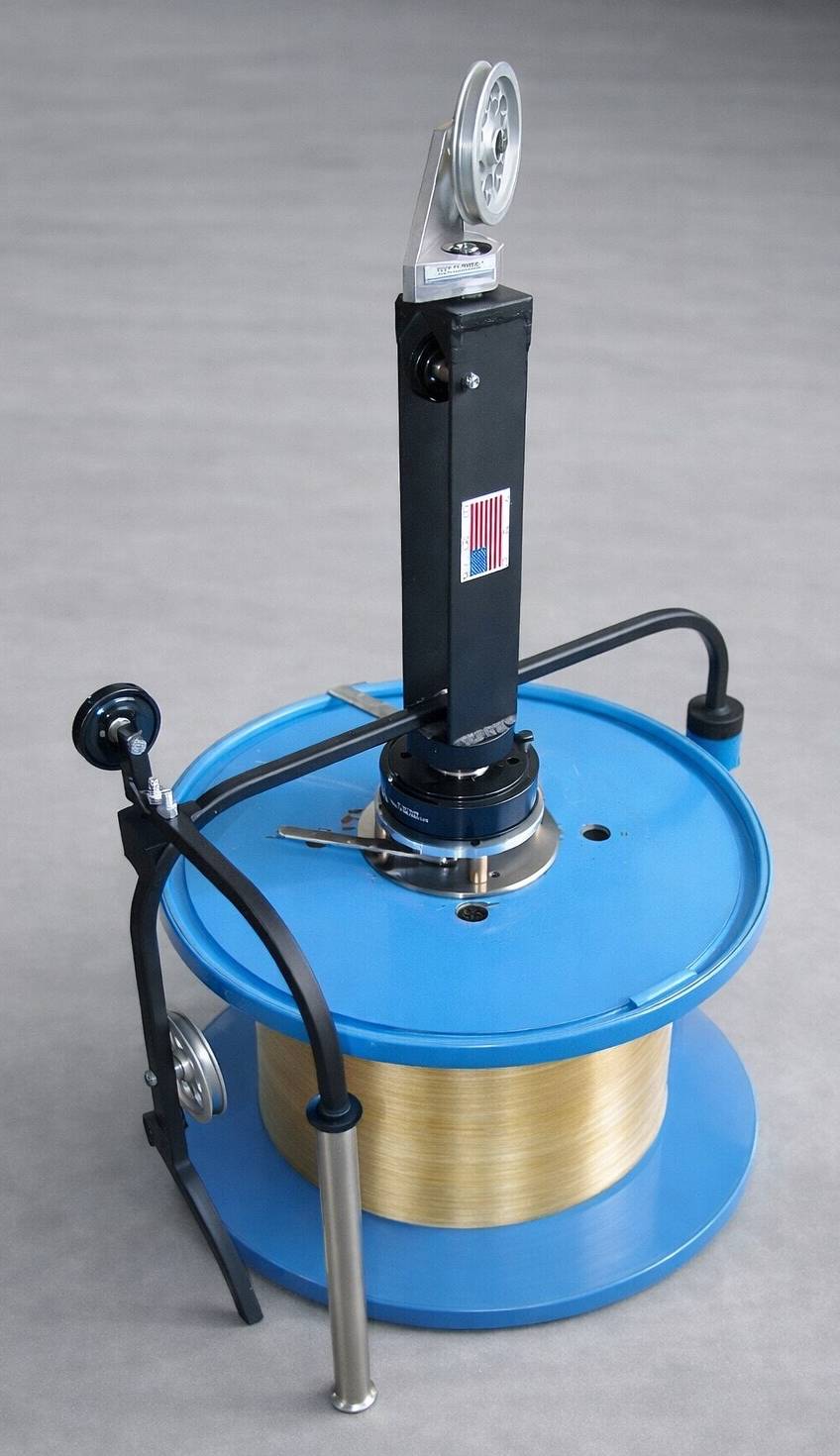

MPF1000-SER
Direction-reversible Permanent Magnetic Particle
Designed for larger gauge, single-end wire, but versatility allows for use with finer wire, as well.
Direction of rotation is reversible, so no more flipping your loaded reels.
MORE INFO
|

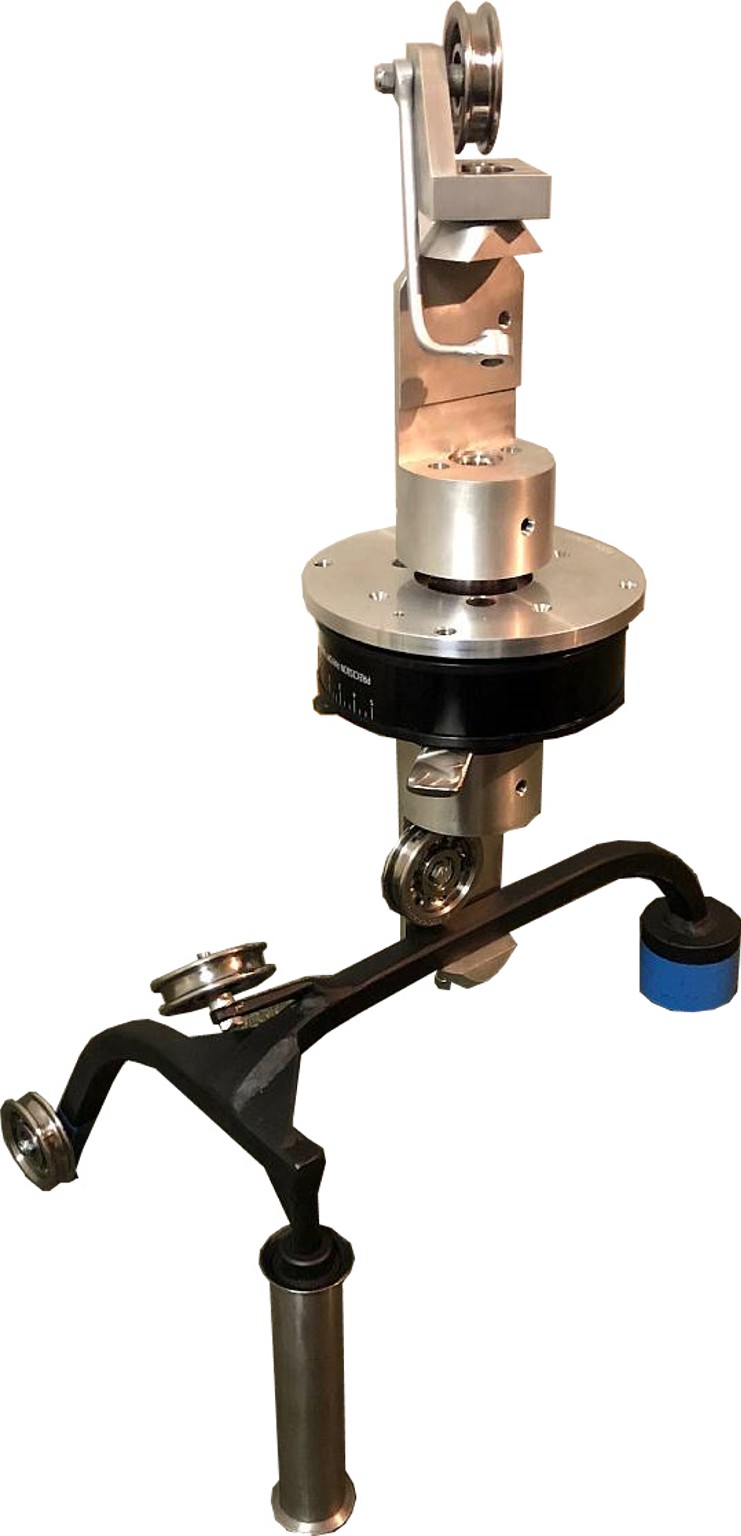

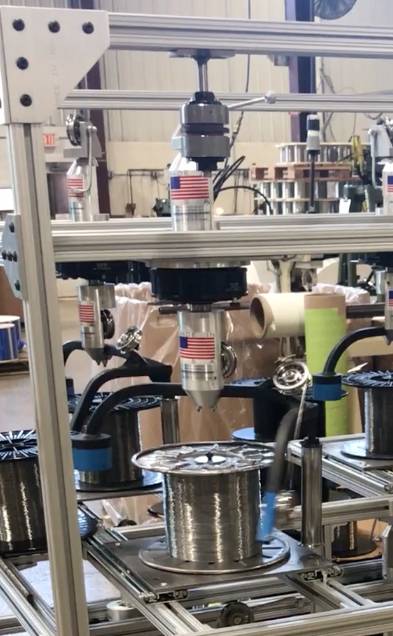

MPF1000-050-SRRM
Light Permanent Magnetic
Particle, Rack-mounted
Designed to be mounted in rack, above a reel.
MORE INFO
|

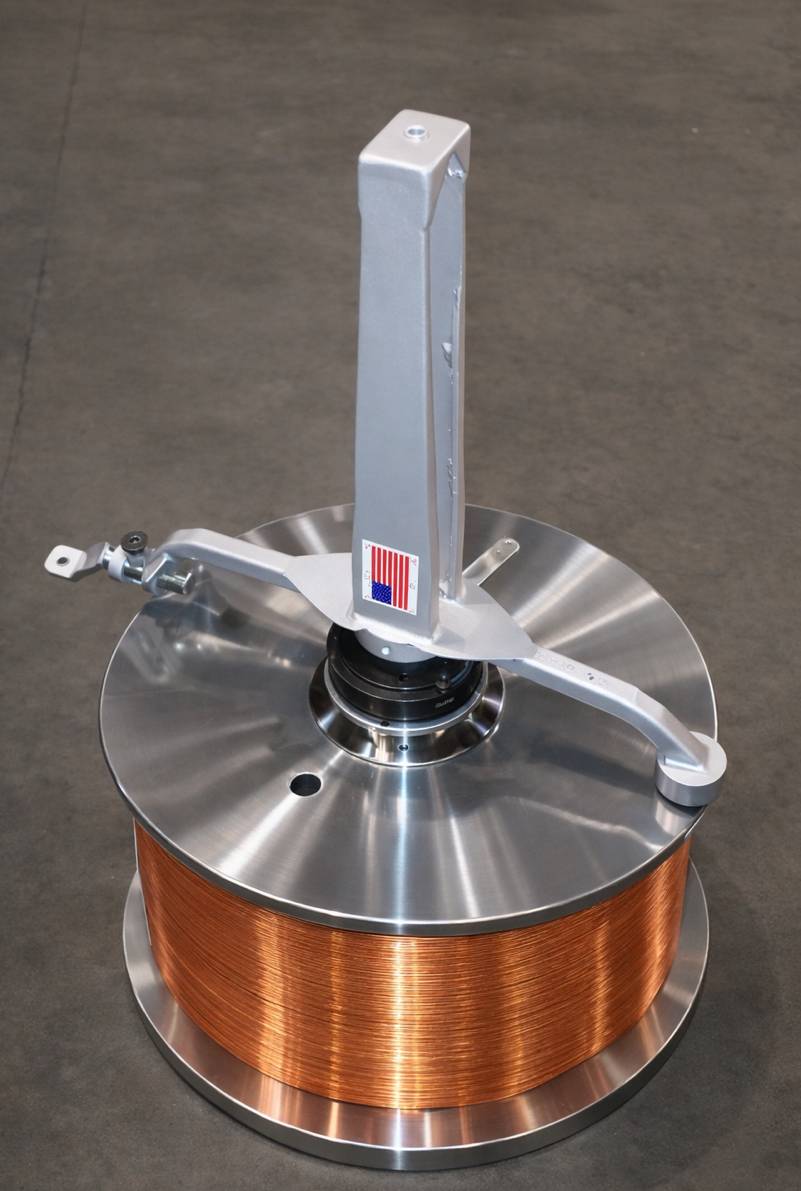

MPF2000-DD-SE
Heavy Dual-directional Permanent Magnetic
Particle
Designed to payoff single-end wire, in either direction.
MORE INFO
|

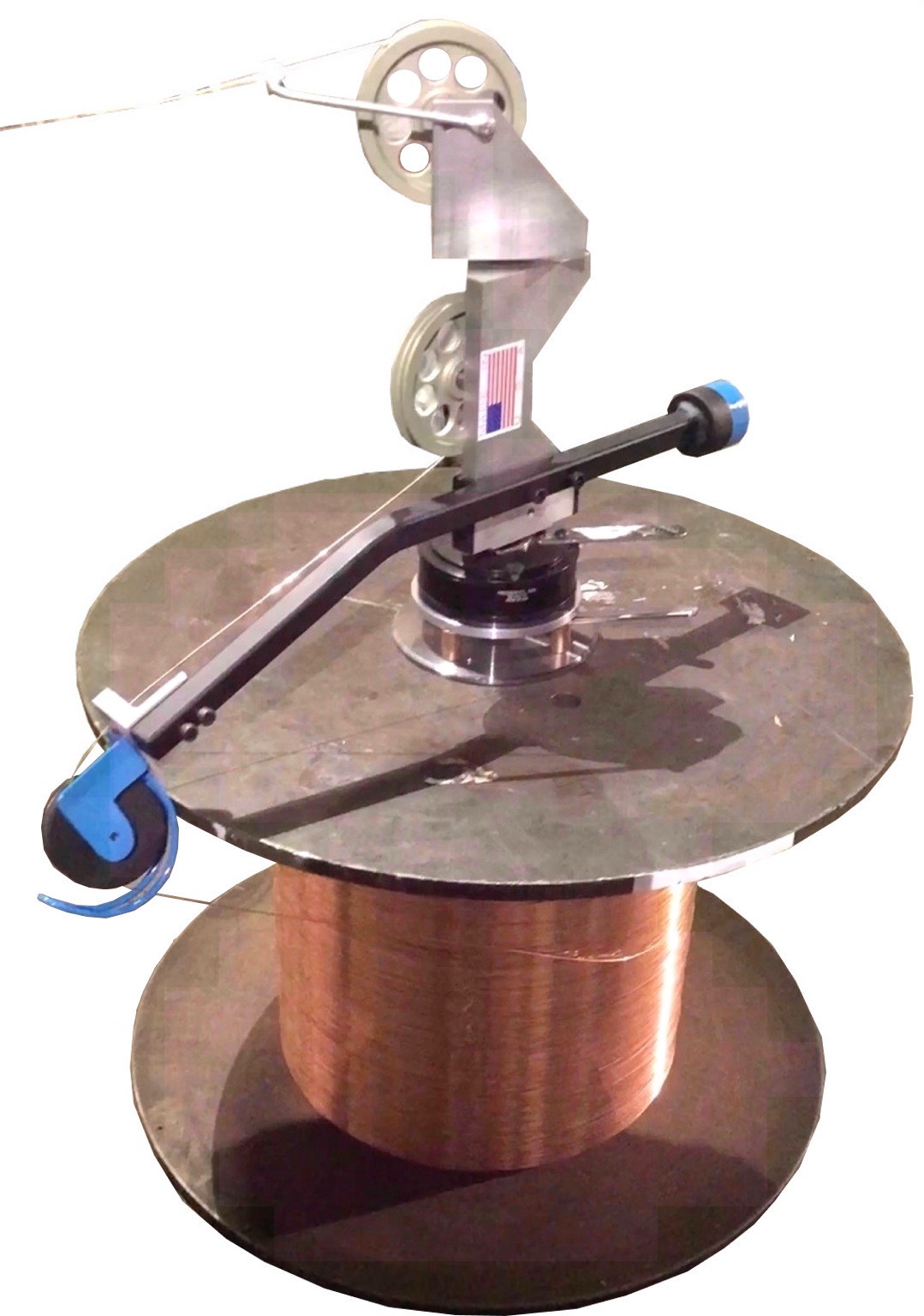

MPF2000-DD-H
Dual-directional, Permanent Magnetic
Particle
Designed to pay off in either direction.
Wire can pay off horizontally, or vertically to your machine.
MORE INFO
|
MPF2000-DD-HV
Dual-directional, for Overhead take-up, Permanent Magnetic
Particle
Designed to pay off in either direction.
Wire can pay off horizontally, or vertically to your machine.
MORE INFO
|

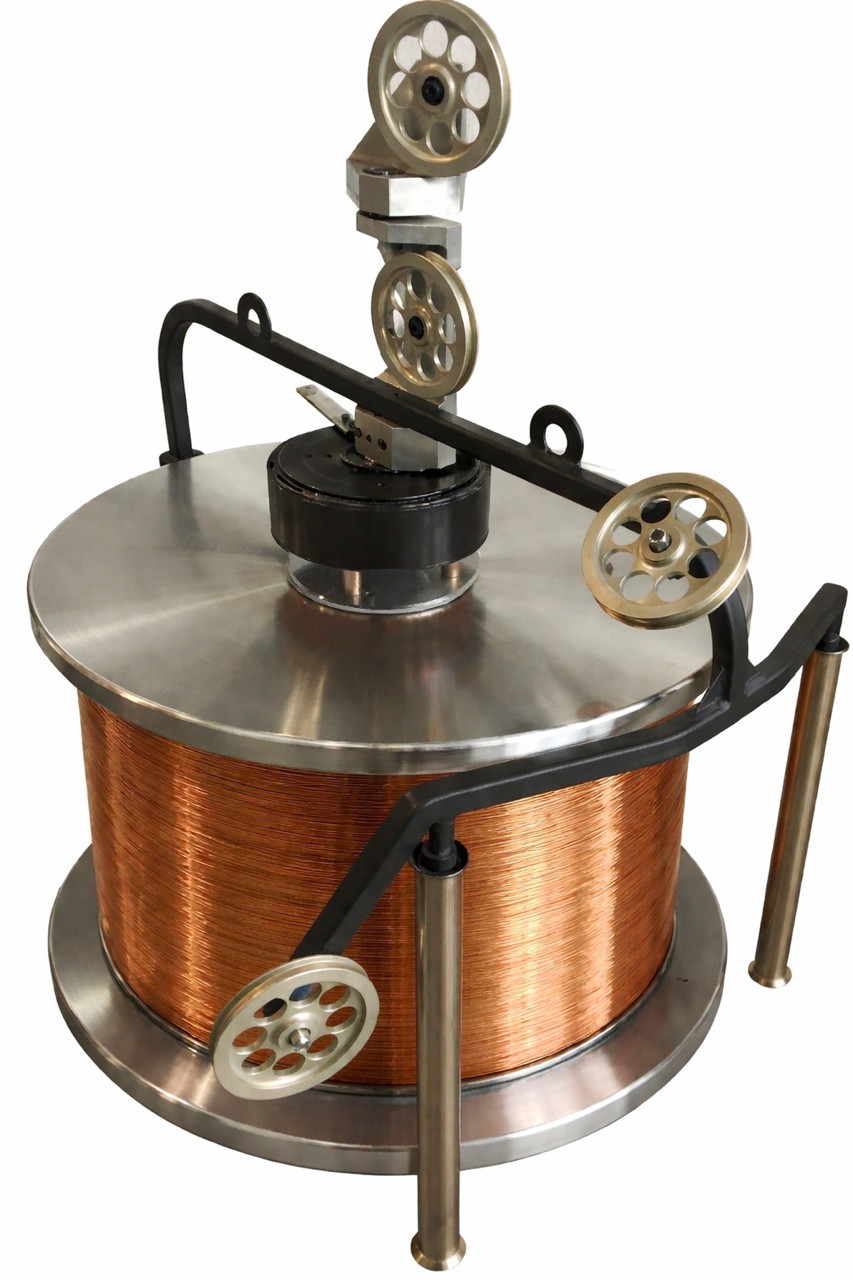

MPF3000-120-DR
Super-Heavy Permanent Magnetic
Particle
Designed to payoff very large wire constructions and where very heavy tension is required.
MORE INFO
|
Overhead-Mounted Pneumatic Clutch
|

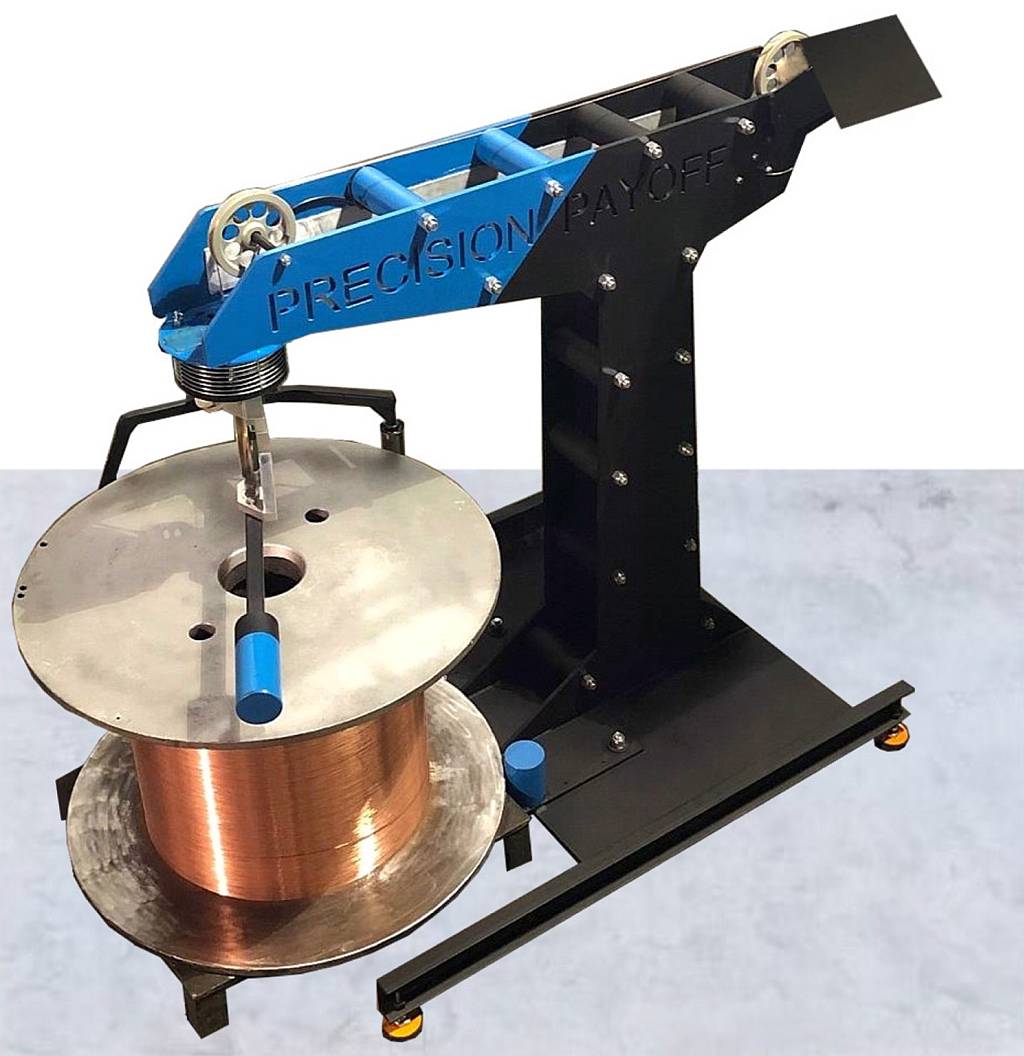

SSQ12000
Stationary Flyer Payoff
This unit is designed to be stationary. A loaded reel is brought to the unit, minimizing damage to equipment and injury to operators. Eliminates the handling of the flyer equipment.
MORE INFO
|
Overhead-Mounted Pneumatic Clutch with Automatic Tension Control
|
SQS24000ATC
Automatic Tension Control Stationary Flyer Payoff
Similar to the SSQ12000, above, but with Automatic Tension Control, and added benefits of more consistent, higher quality wire and less scrap and customer returns.
MORE INFO
