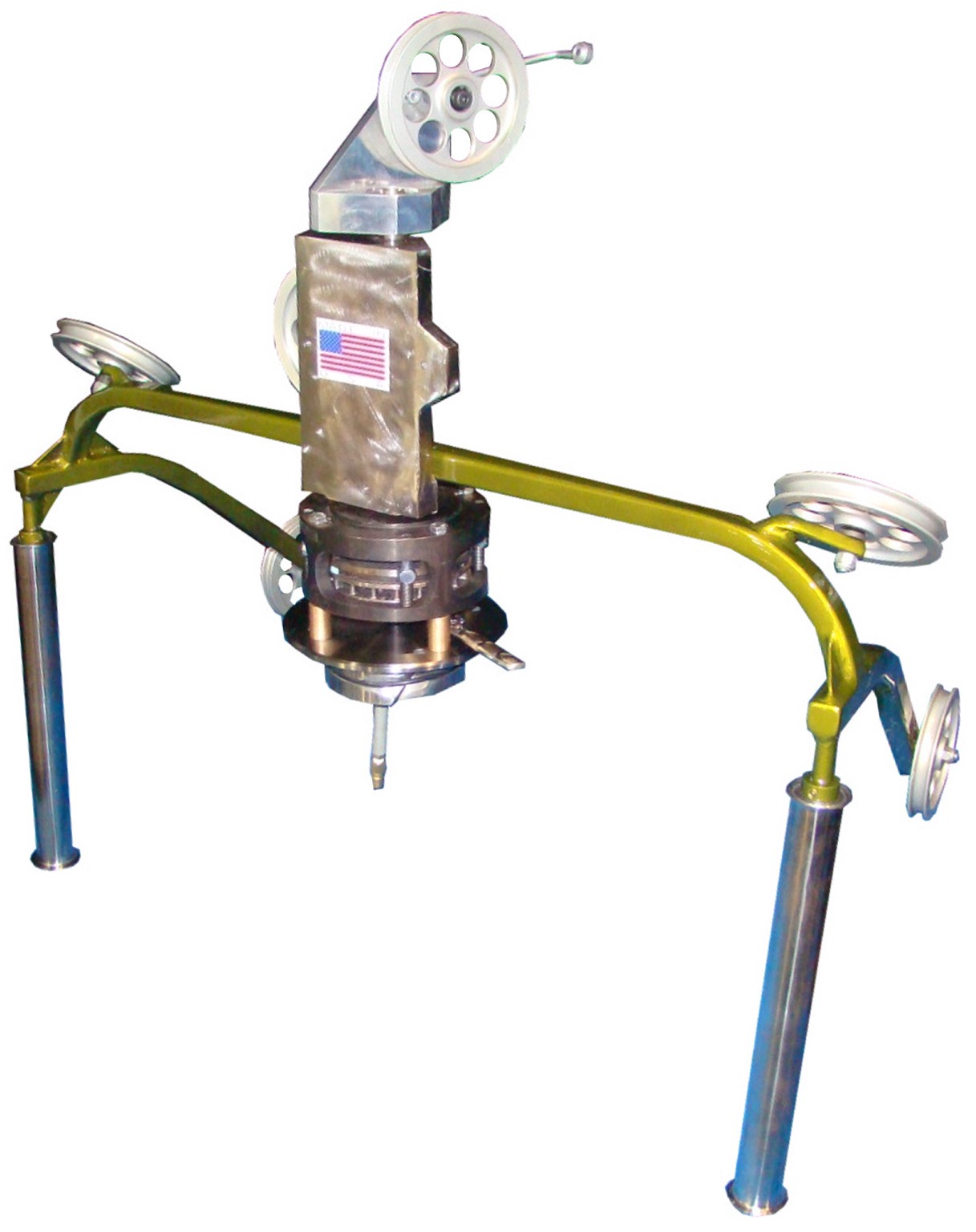

AWF2000-120-DD
Dual-directional Pneumatic Flyer
- Air-cooled Pneumatic clutch*
- Dual-directional operation - Pays off in either direction
- 120mm pulleys
- Versatility allows for use with finer wire, as well
- Designed for larger gauge, single-end wire
- No outside power source
- Pays off at high speeds without sacrificing quality
- Maximum line speeds of 600m/minute (1968 ft/min)
- "On-the-fly" adjustment for reduced down time
- Optional 3-Stage Pulley System
- Rapid-Ratchet™ Lock Down Mechanism
* Our disc-on-disc pneumatic clutch is designed for automatic air-cooling.
Traditional "caliper-on-disc" designs tend to produce uneven heating within the disc itself. This causes eventual warping of the disc, and results in wire deviation, or inconsistent payoff tension which causes loose strands and wire breaks.
|
