Precision Payoff Systems Model AWF2000-SINGLE-END REVERSIBLE

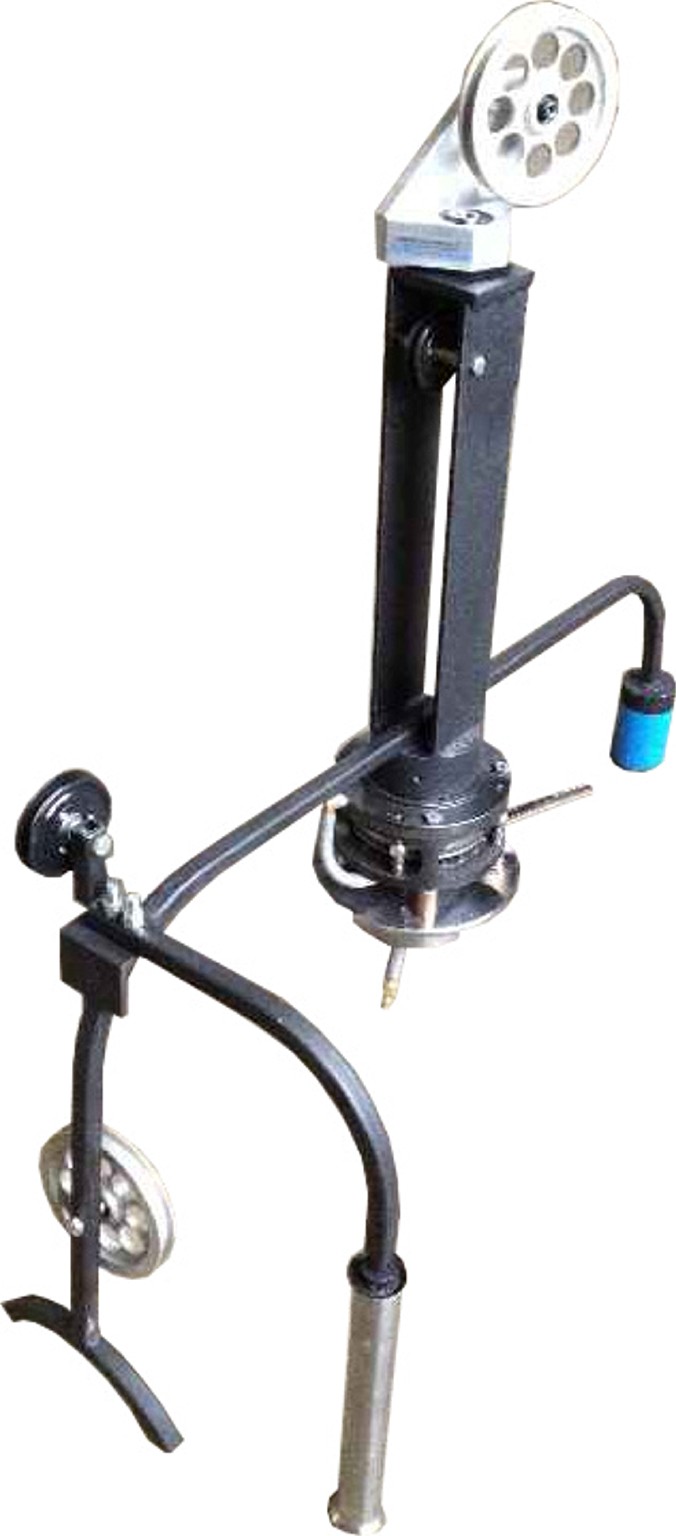

AWF2000-SE Reversible Direction Pneumatic Flyer

AWF2000-SE Direction-reversible Pneumatic Flyer

Air-cooled Pneumatic clutch*
Dual-direction reversible
120mm pulleys and ceramic pulleys
Versatility allows for use with finer wire, as well
Designed for larger gauge, single-end wire
No outside power source

Pays off at high speeds without sacrificing quality
Maximum line speeds of 600m/minute (1968 ft/min)
"On-the-fly" adjustment for reduced down time
Rapid-Ratchet™ Lock Down Mechanism

* Our disc-on-disc pneumatic clutch is designed for automatic air-cooling.
Traditional "caliper-on-disc" designs tend to produce uneven heating within the disc itself. This causes eventual warping of the disc, and results in wire deviation, or inconsistent payoff tension which causes loose strands and wire breaks.
